Diverter Valve MDV2020B with Sol/Pilot Cover

NEW PRODUCT : Diverter Valve with Sol/Pilot Cover
- Solenoid Valve Integrated End cover
- Typical Application : Valve Compartment Seperate Tank Return Circuit. Operater can switch between Bi-Directional Circuits & Uni-Directional Circuit by simple electrical switch.

Mechanical Pulverizer VS Hydraulic Pulverizer



COMPARISON TABLE

MAKER		LYNX	Allied CP	LaBounty
MODEL		TP25V	AMP50	CP60
Operating Weight	kgs	1,950	1,765	1,361
Full Opening	mm	950	1,070	914
Upper Jaw Width		540	350	N/A
Lower Jaw Width		540	510	737
Jaw Depth		870	N/A	686
Cutter Length		200	164	N/A
Crushing Force (tip)	metric tons	62	35	N/A
Cutting Force		202	100	N/A

Lynx TP25V : http://www.lynxattachments.com/pdf/LYNX%20TP-V%20Secondary%20Pulverizers.pdf
LaBounty CP60 : http://www.stanleyhydraulic.com/LinkClick.aspx?fileticket=nsLuhHmbufk%3d&tabid=117

Allied CP AMP50 : http://www.alliedcp.com/pdf/products/AMP_Brochure.pdf

Diverter Valve with Sol End Cover

Typical Application of Diverter Valve with Sol Cover ( External Pilot )
for more information
: http://www.lynxattachments.com/pdf/Diverter%20Valve%20Pilot%20Operated.pdf

One of our Rock grapple was displayed on 5 ton Wacker Neuson wheeled excavator at last week's show & it caught lots of attention from contractors.

MFG by http://www.lynxattachments.com
DIST by http://www.vanedequipment.com

How to change jaws easily and safely

Compare to horizontal postion, it's easier and safer to position the processor to verticaly ( top plate down ). Jaw's pin boss slide into main body easily by gravity's aid.

MINI Crusher : 4-7 ton excavators

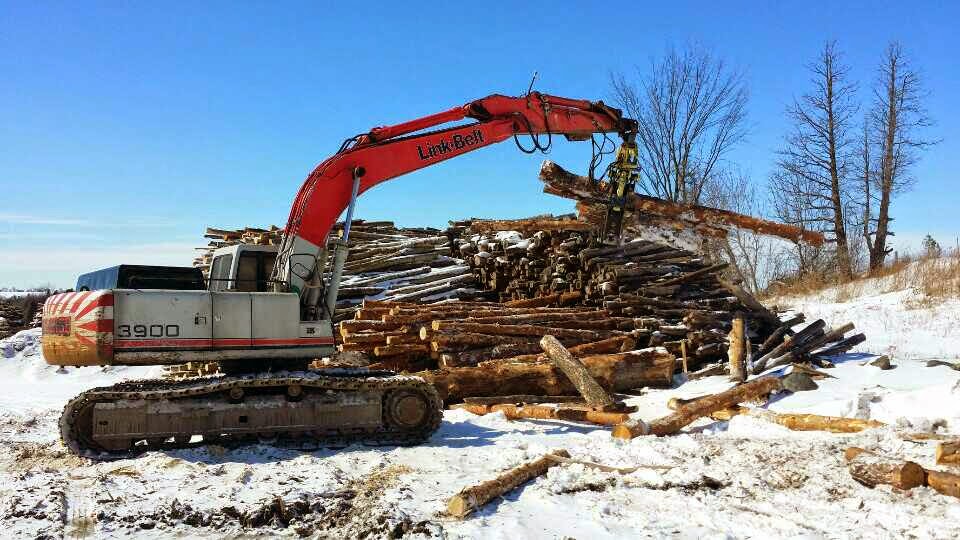

SCG Log Grapple

http://www.lynxattachments.com

Third Membet Steel Shears

Sandwich Check Valve Code 62 -20, Cracking Pressure of 25 psi

Dual Check Valve Typical Installation ( Hydraulic Wedge Coupler Circuit )

http://www.lynxattachments.com

Diverter Valve ( 3-way selector valve ) Typical Installation

Diverter Valve ( 3-way Selector Valve ) on existing factory tube ( Code 62 -20 Four Bolt Flange )

Auxiliary Hydraulic Plumbing Parts

STICK END HYDRAULIC INSTALLATION

Easy Shimming

http://www.lynxattachments.com

CONEXPO Lynx Booth

Lynx Magnetic Pulverizer

TC Demolition Multi Processor

Higher degree of maneuverability compare to Mechanical crusher having one fixed jaw mounted on carrier's stick and Hydraulic crusher with single cylinder & one fixed jaw. http://www.lynxattachments.com

LYNX Hydraulic Pulverizers VS Mechanical Pulverizers
